雙肢鏈條索具包括S6級雙肢鏈條索具、組裝型T8級雙肢鏈條索具和S6級雙肢環形鏈條索具，安全可達到4倍的安全系數。S6級雙肢鏈條索具的額定載荷有1.4t、2.1t、3.5t、4.9t、7t、8.4t、11.2t……；組裝型T8級雙肢鏈條索具額定載荷包括1.568t、2.8t、4.41t、7.42t、10.92t、15.68t、21t、29.6t、44.1t，大噸位及特殊噸位的均可訂做。
雙肢鏈條索具包括S(6)級雙肢鏈條索具、組裝型T(8)級雙肢鏈條索具和S(6)級雙肢環形鏈條索具，安全可達到4倍的安全系數。S(6)級雙肢鏈條索具的額定載荷有1.4t、2.1t、3.5t、4.9t、7t、8.4t、11.2t……；組裝型T(8)級雙肢鏈條索具額定載荷包括1.568t、2.8t、4.41t、7.42t、10.92t、15.68t、21t、29.6t、44.1t，大噸位及特殊噸位的均可訂做。
S(6)級雙肢鏈條索具產品參數：
|
產品型號 |
鏈條直徑 |
額定載荷 t |
主吊環 mm |
每米重量 |
鏈條重量 |
|
|
α≤45° |
45°＜α≤60° |
AxBxd |
||||
|
LSJ(H)2-6 |
6 |
1.4 |
1 |
65x130x16 |
3.61 |
0.79 |
|
LSJ(H)2-8 |
8 |
2.1 |
1.5 |
80x150x20 |
6.1 |
1.38 |
|
LSJ(H)2-10 |
10 |
3.5 |
2.5 |
90x160x24 |
11.51 |
2.2 |
|
LSJ(H)2-12 |
12 |
4.9 |
3.5 |
90x160x24 |
16.45 |
3.1 |
|
LSJ(H)2-14 |
14 |
7 |
5 |
100x190x28 |
19.39 |
4.13 |
|
LSJ(H)2-16 |
16 |
8.4 |
6 |
110x200x32 |
27.2 |
5.63 |
|
LSJ(H)2-18 |
18 |
11.2 |
8 |
120x230x34 |
30.21 |
6.85 |
|
LSJ(H)2-20 |
20 |
14 |
10 |
135x250x38 |
37.03 |
8.6 |
|
LSJ(H)2-22 |
22 |
16.8 |
12 |
140x270x42 |
71.23 |
10.2 |
|
LSJ(H)2-24 |
24 |
19.6 |
14 |
140x270x42 |
75.3 |
12.78 |
|
LSJ(H)2-26 |
26 |
23.8 |
17 |
160x310x46 |
124.37 |
14.87 |
|
LSJ(H)2-30 |
30 |
30.8 |
22 |
180x330x56 |
134.3 |
19.6 |
|
LSJ(H)2-34 |
34 |
40.6 |
29 |
210x410x68 |
155.45 |
22.7 |
選用標準：參照GB20652標準。
該索具可以作為雙肢捆綁索具使用，當雙肢捆綁索具使用時只需將吊鉤鉤入鏈條，此時額定載荷將降低20%
安全保證：4倍安全系數
表面處理：拋光、發黑、鍍鋅、噴漆等

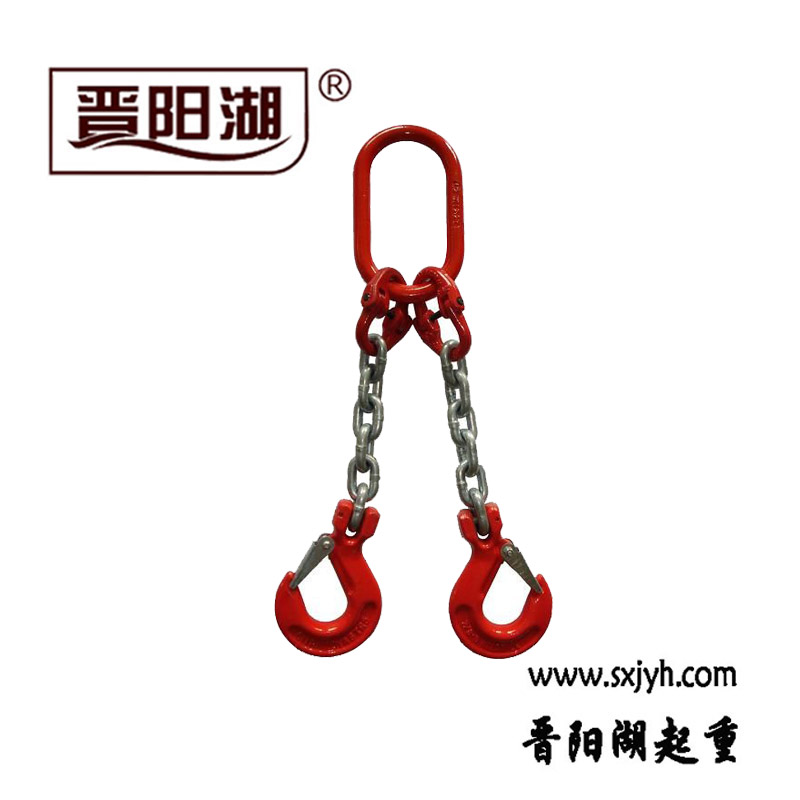

組裝型T(8)級雙肢鏈條索具參數：
|
產品型號 |
鏈條直徑 |
額定載荷 t |
主吊環 mm |
每米重量 |
鏈條重量 |
|
|
α≤45° |
45°＜α≤60° |
AxBxd |
||||
|
LSJ2-6 |
6 |
1.568 |
1.12 |
60x110x13 |
3.8 |
0.79 |
|
LSJ2-8 |
8 |
2.8 |
2 |
75x135x18 |
6.93 |
1.38 |
|
LSJ2-10 |
10 |
4.41 |
3.15 |
90x160x22 |
11.4 |
2.2 |
|
LSJ2-13 |
13 |
7.42 |
5.3 |
100x180x26 |
19.3 |
3.8 |
|
LSJ2-16 |
16 |
10.92 |
7.8 |
110x200x32 |
31.2 |
5.63 |
|
LSJ2-20 |
20 |
15.68 |
11.2 |
160x300x40 |
54.55 |
8.6 |
|
LSJ2-22 |
22 |
21 |
15 |
180x340x45 |
65.3 |
10.2 |
|
LSJ2-26 |
26 |
29.6 |
21.2 |
190x350x50 |
66.94 |
14.87 |
|
LSJ2-32 |
32 |
44.1 |
31.5 |
200x400x60 |
108.59 |
22.29 |
選用標準：參照Q/JL018企業標準
該索具可以作為雙肢捆綁索具使用，當雙肢捆綁索具使用時只需將吊鉤鉤入鏈條，此時額定載荷將降低20%
安全保證：4倍安全系數
表面處理：拋光、發黑、鍍鋅、噴漆等。
S(6)級雙肢環形鏈條索具參數：
|
產品型號 |
鏈條直徑 |
額定載荷 |
主吊環 |
每米重量 |
鏈條重量 |
|
|
α≤45° |
45°＜α≤60° |
AxBxd |
||||
|
HLSJ(H)2-6 |
6 |
1.7 |
1.2 |
65x130x16 |
2.47 |
0.79 |
|
HLSJ(H)2-8 |
8 |
2.55 |
1.8 |
80x150x20 |
4.44 |
1.38 |
|
HLSJ(H)2-10 |
10 |
4.25 |
3 |
90x160x24 |
7.56 |
2.2 |
|
HLSJ(H)2-12 |
12 |
5.95 |
4.2 |
100x190x28 |
11.16 |
3.1 |
|
HLSJ(H)2-14 |
14 |
8.5 |
6 |
100x190x28 |
15.1 |
4.13 |
|
HLSJ(H)2-16 |
16 |
10.2 |
7.2 |
120x230x34 |
21.86 |
5.63 |
|
HLSJ(H)2-18 |
18 |
13.6 |
9.6 |
140x270x42 |
30.74 |
6.85 |
|
HLSJ(H)2-20 |
20 |
17 |
12 |
140x270x42 |
36.88 |
8.6 |
|
HLSJ(H)2-22 |
22 |
20.4 |
14.4 |
160x310x46 |
46.52 |
10.2 |
|
HLSJ(H)2-24 |
24 |
23.8 |
16.8 |
160x310x46 |
56.16 |
12.78 |
|
HLSJ(H)2-26 |
26 |
28.9 |
20.4 |
180x330x52 |
68.58 |
14.87 |
|
HLSJ(H)2-30 |
30 |
37.4 |
26.4 |
180x330x56 |
85.16 |
19.6 |
|
HLSJ(H)2-32 |
32 |
39.2 |
18 |
180x330x56 |
56.48 |
22.29 |
|
HLSJ(H)2-34 |
34 |
56.9 |
40.88 |
210x410x68 |
115.86 |
22.7 |
|
HLSJ(H)2-38 |
38 |
70 |
50 |
240x410x76 |
232.22 |
29 |
|
HLSJ(H)2-42 |
42 |
86.24 |
61.6 |
240x460x84 |
304.1 |
35.3 |
